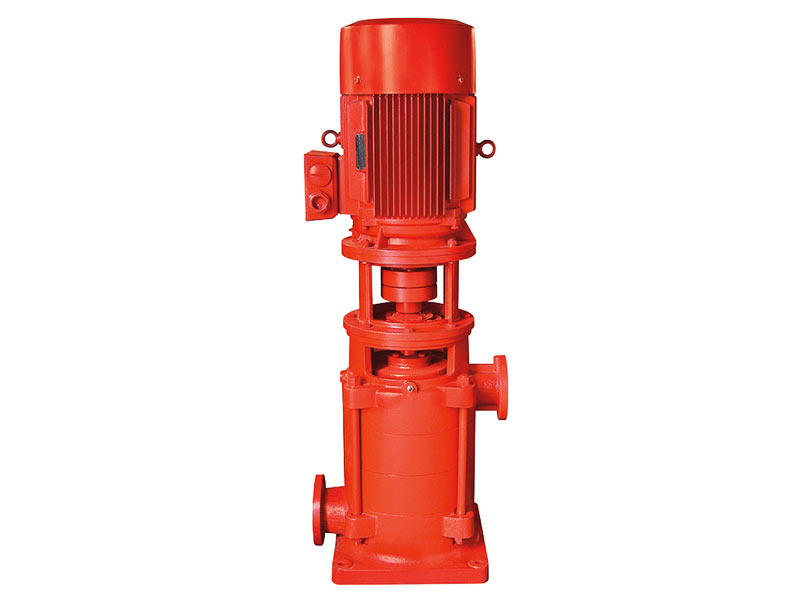

Электрический вертикальный многоступенчатый насос XBD-DL

Vertical Multistage Electric Fire Pump

XBD series fire pumps are a kind of new type fire products researched and developed in full compliance with the state issued-newly standard of GB6245-2006 "Fire pump", according to the end-user's practical needs and special using requirements. The inspection of the state fire equipment quality supervising center shows its all kinds of performance indexes are up to or over the standard's requirements and it earned the certificate for fire state products.

1. Application Scope
XBD series fire pumps are mainly used for the fixed fire hydrant system; automatic spraying fire system used by all sorts of organs, projects, high-floor buildings etc. and can be transferred with the clear water without solid grain under 100 or its equivalence, also be used for public-used water providing system for fire, living, production, construction and municipality.

2. Using Instruction

Before start:
1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position.
2. Opening the inlet valve and the vent valve, letting the water fill into the pump's chamber, then closing the vent valve.
3. Clicking the switch of motor, and confirming whether the turning is right or not.

Running:
1. Fully opening the inlet valves, and closing the valves of the outlet pipe.
2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal.
3. Watching whether there exist abnormities or not, if yes, should the pump be stopped and inspected before re-running.

Stop:
1. After turning off the outlet valves one by one, shutting off the power.
2. Shutting off the inlet valves.
3. If the ambient temperature is below 0, some warm keeping measures should be adopted.

Модель	Расход(m3/h)	Напор (мПа)	Мощность (кВт)	Скорость (об./мин.)	Диаметр отверстия (mm)
XBD2.0/1.67-40DL	6	0.2	1.5	2900	40
XBD10.0/1.67-40L	7.2	1.0	7.5	2900	40
XBD2.0/5-50DL	18	0.5	3	2900	50
XBD4.0/5-50DL	18	0.4	4	2900	50
XBD7.8/5-50DL	18	0.78	7.5	2900	50
XBD10.2/5-50DL	21.6	1.02	11	2900	50
XBD3.0/10-65DL	43.2	0.3	5.5	2900	65
XBD7.0/10-65DL	36	0.7	15	2900	65
XBD6.0/15-80DL	54	0.6	15	2900	80
XBD12.0/15-80DL	54	1.20	30	2900	80
XBD9.3/20-100DL	72	0.93	37	2900	100
XBD16.0/20-100DL	72	1.6	55	2900	100
XBD8.0/25-100DL	90	0.8	37	2900	100
XBD14.0/25-100DL	108	1.4	75	2900	100
XBD4.0/30-125DL	108	0.4	18.5	2900	125
XBD8.0/35-125DL	108	0.6	45	2900	125
XBD6.0/40-150DL	144	0.6	37	2900	150
XBD14.0/40-150DL	144	1.4	75	2900	150
XBD12.2/45-125DL	162	1.22	90	2900	150
XBD17.5/50-150DL	194	1.75	132	2900	150
XBD3.8/80-200DL	288	0.38	55	2900	200
XBD12.0/80-200DL	180	1.20	160	2900	200
ДЛЯ ПОЛУЧЕНИЯ БОЛЕЕ ДЕТАЛЬНОЙ СПЕЦИФИКАЦИИ, ПОЖАЛУЙСТА, СВЯЖИТЕСЬ С НАМИ
