Booster Pump Set Domestic
Description

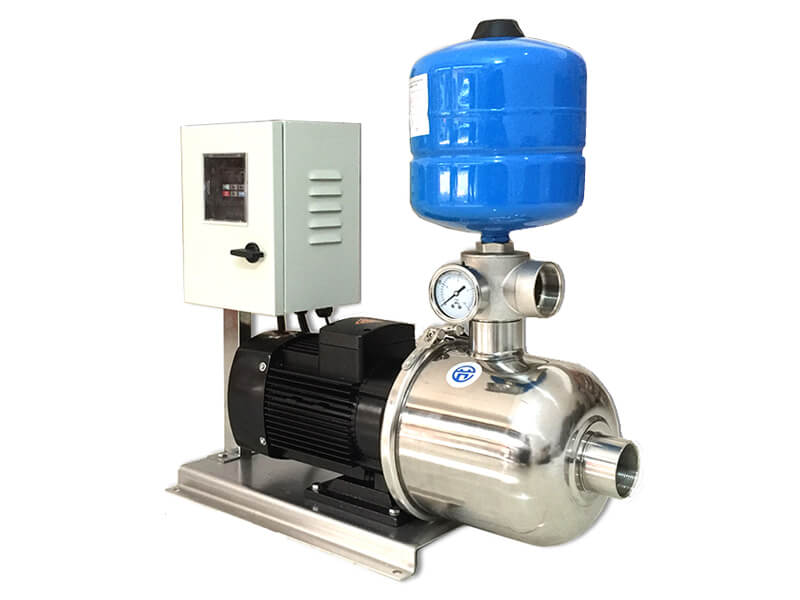

SQB Automatic Frequency Conversion
Booster Pump Set is composed of newest high performance PID frequency conversion control cabinet, one pump or more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand.
The pressure of water supply net can be kept constant water pressure. The whole water supply system can run effectively energy saving and perfect status.
Advantages
1. SS 304 material: durable and clean
2. Simple and compact structure: easy maintenance
3. YE 3 motor: high performance, high efficiency and eco-friendly
4. PID frequency conversion control cabinet: digital display for easy use
5. Automatically keep for constant pressure, save energy and protect the pump

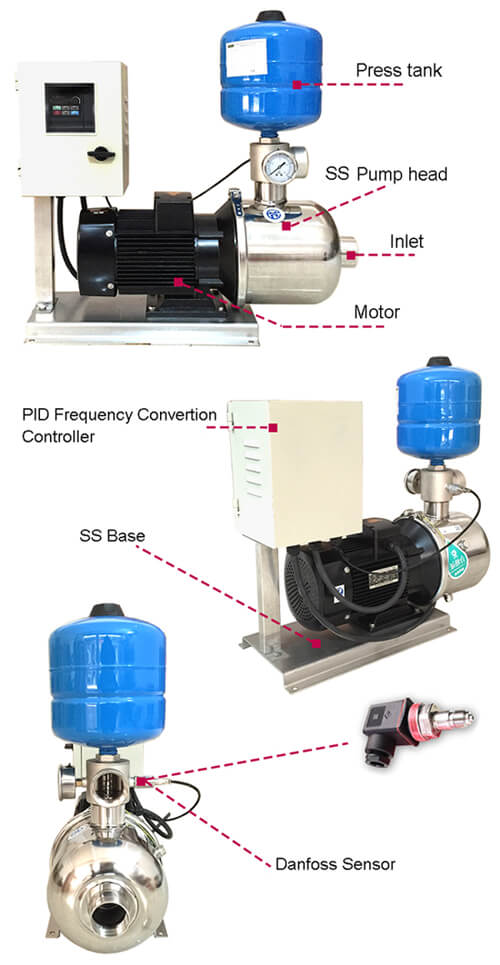

Components:
Vertical/horizontal stainless steel multistage pump
Frequency converter and pressure sensor
A series pipeline, valve and base

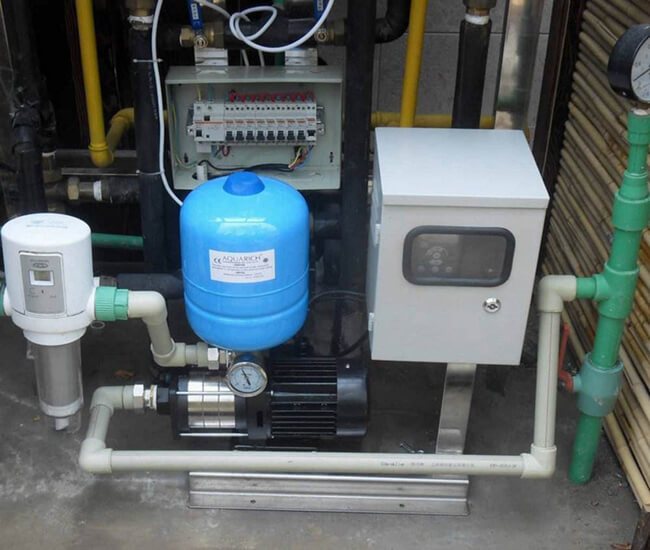

Application
1.Used for water plant and booster pump station
2.Used for water supply of residential area, hotel, restaurant and big public building
3.Used for all kinds of factory
4.Used for fire fighting of residential area, hotel, restaurant and big public building
5.Used for factory constant pressure ,cooling water and circulation water
6.Used for hot water supply, air condition and so on
7.Used for sewage pump station,sewage handle and so on
8.Used for agricultural irrigation,greenland irrigation, landscape and fountain
|
Item
|
Constant pressure water supply system
|
|
Model
|
SQB series
|
|
Pump material
|
Stainless steel
|
|
Size
|
Light , small
|
|
Mode
|
Vertical or horizontal
|
|
Drive
|
Variable frequency driven
|
|
Pressure
|
Constant
|
|
Impeller
|
Close impeller
|
|
Seal
|
Mechanical seal
|
|
Speed
|
2900r/min
|
|
Theory
|
Centrifugal pump
|
|
Character
|
High pressure, multistage
|
|
Usage
|
Building , hotel ,hospital or domestic booster
|
|
Power
|
Electric
|
|
Standard or Non
|
Standard
|
|
Shaft
|
Stainless steel
|
|
Capacity
|
110 gpm
|
|
Head
|
Max 110 m
|
|
Power
|
0.37-7.5kw
|
|
Warranty
|
12 months
|
|
Certificate
|
ISO9001:2008
|
|
ODM/OEM
|
Acceptable
|
|
Valves
|
Butterfly valves, check valve
|
|
Pipe material
|
Stainless steel or carbon steel
|
|
Gauge
|
Pressure gauge
|
|
Sensor
|
Pressure sensor(1.0 or 1.6mpa)
|
|
Pressure tank
|
yes
|
|
Pump quantity
|
1-4 sets
|
